Quick Reference Guide - Menus

The reference guide below lists all of the MB-1 menus and indicates which menus have Display Screens and Setup Screens associated with them. It is recommended that you read the Programming MB-1 Overview first.

In the table below, if the Display Function column is set to YES, this indicates that you can read the parameters associated with that menu function in a read-only mode by pressing the Display button. For example, to view the Alarm Parameters, select the Alarm Menu on line 4 of the LCD and then press the DISP (Display) button.

If the Setup Function column is set to YES, this indicates that the associated menu has a Set-Up screen associated with it. For example, to perform a custom coupler calibration, select the Coupler Menu on line 4 of the LCD and then press the Set-Up button.



Menus

Menu
Name		 Sample Menu

(Menus appears on line 4 of LCD)

See full description in Section 3 of
User's Manual

Description



 Display
Function
 is Applicable		 Setup
Function is Applicable
Alarm

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 ALARM-ON  CLEAR    -  -

Controls Alarm Functions. Yes Yes
Averaging
Filter

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 AVFLT    SS-OFF    CHS-OFF

Sets up Averaging Parameters. Also toggles Constant Signal (Steady State) indicator and “SWR Changing” indicator on/off.

 Yes Yes
Band
Select

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 BAND-6mtr           COR=1.075

Selects the band and applies and displays real time band correction factors if band correction was performed during calibration of the coupler.

 Yes No

(Band correction is done as part of Coupler calibration)
Bar Graph

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 BGINT    AVG   AUTO    SOFF

 Controls the Bar Graph functions for both the internal Bar Graph (Line 1 of LCD) and the external Hi Visibility Bar Graph module. YES Yes
Backup Meter Configuration
||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 BKSET=0*    RST     SAV    (S)
Controls Backup and Restore of the Configuration sets. No No
Brightness

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 BRLCD-4     7SEG-3    CON-4

Controls the brightness of the LCD display and internal 7-segment displays. Also controls the contrast of the LCD display. No No
Button Duration Indicator

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 BUT-IND-SOUND    -    -  -

 Controls the type of indication (audible beep or LED flash) that the user receives when initially pushing a button, and when the medium and long push intervals elapse when holding down a multifunction button. No No
Coupler
Selection

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 COUP3   BANK=REAL  TRIM

 Selects real coupler ports 1 through 4 (when the REAL coupler bank is selected) or virtual couplers 5 – 8 when the virtual coupler bank is selected). When the REAL coupler bank is selected, this allows you to select the power coupler or other input device (RF Ammeter Coupler, Analog Sensor Input) that is connected to the associated coupler port. Yes Yes
Digital (Seven Segment) Display Control for
Internal 7-segment Modules
(1 - 4)

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 D2   MD=SWR     Z=OFF     -

 Specifies the measurement type or configuration value to be displayed on each of the four internal seven segment display modules. No No
Digital (Seven Segment) Display Control for
Hi-Visibility External Modules
(5 – 6)

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 D5   MD=SWR    Z=OFF     A

 Same as above, but the external 7-segment module, if configured, have a fourth field (“TYPE” identifier, e.g., A) that is used to select the correct software driver based on the type of external module that is connected to the rear panel IDC connectors. (The different size display modules use different drivers.) No No
Demo Mode

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 DEMO-CON     OFF     -  -

 Places meter in Demo mode. This activates the on-board simulator, allowing you to select one of six pseudo random measurement modes. Yes Yes
EEPROM
Backup and Restore Utility

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 EEPROM-BKP-U START   --

 EEPROM Backup/Restore to/from a PC file. Also updates OEM Coupler calibration Tables (to support calibration updates or new coupler types). No No
LCD
Configuration

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 LCD-TUN     PK-F     L3-Swr

 Controls the measurement information that is displayed on the 4x20 LCD. Also determines whether peak power measurements are Peak FWD power or Peak Delivered power
(Peak FWD pwr – Peak REFL pwr).		 No No
Min/Max Configuration

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 MINMAX-SWR   RESET    L4

 Selects the measurement parameter to be processed by the Min/Max function. No No

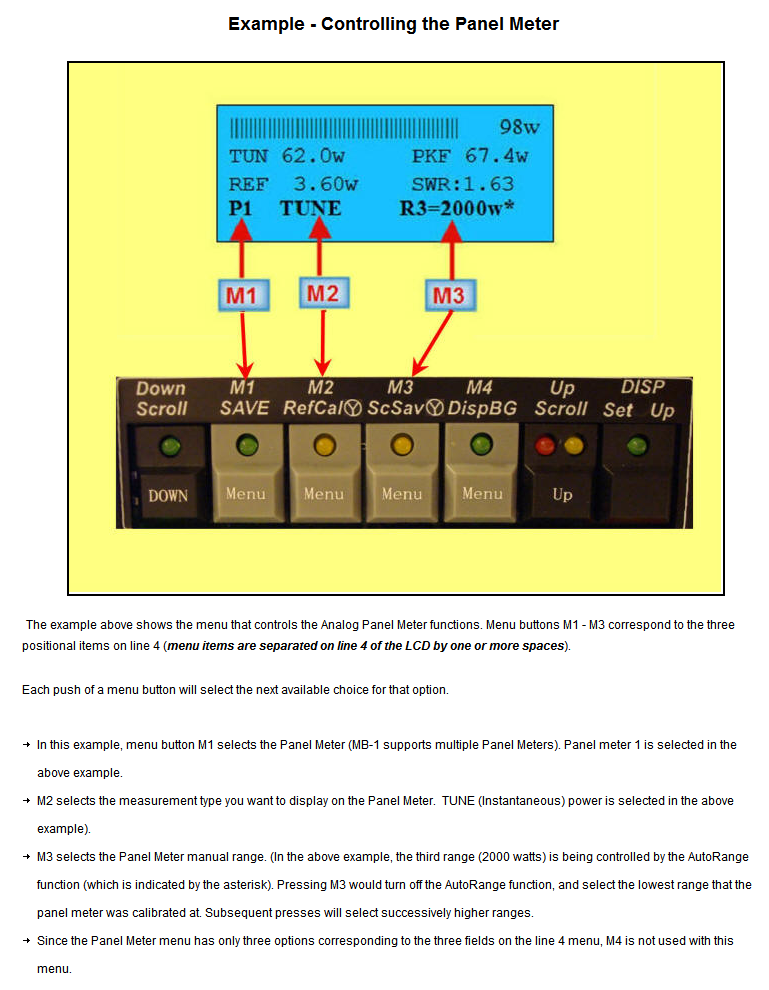

Panel Meter Control

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 P1     TUNE         R3=2000w*

 Selects the Panel Meter (Internal meter or one of the External meters) and controls Panel Meter options such as the measurement to be displayed and the range. Yes Yes
Panel Meter Decay Time
 Setup

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 PANL-DECAY[1000 ms]

 Sets the panel meter decay time (the time delay before the panel meter “downranges” when automatically switching to a lower range when in the AutoRange mode). No Yes
Peak Hold
Time Setup

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 PEAK-HOLD-[1800 ms]

 Sets the peak hold time for all display devices that have been configured to display a peak value (e.g., RF power, RF current, Analog Sensor value). No Yes
Screensaver Control

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 SCRNSAVR-ON      DELAY-2

 Controls the Screensaver activate delay time (in minutes), and also allows the Screensaver to be totally disabled. No No
Self-Test Diagnostics

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 SELF-TST-START   -  -  -

 Initiates the interactive hardware self test routines, which run diagnostics on the meter hardware and displays the results on the LCD. No No
Speed
(Display Update)  Control

||||||||||||||||||||||||||||||||||||||||||||||            98w
--- -----      -- -----
--- -----      -- -----
 SPD2       BG4       PM5     -

 Sets the rate at which the various display devices are updated. Yes

(Displays Performance Metrics)

 No

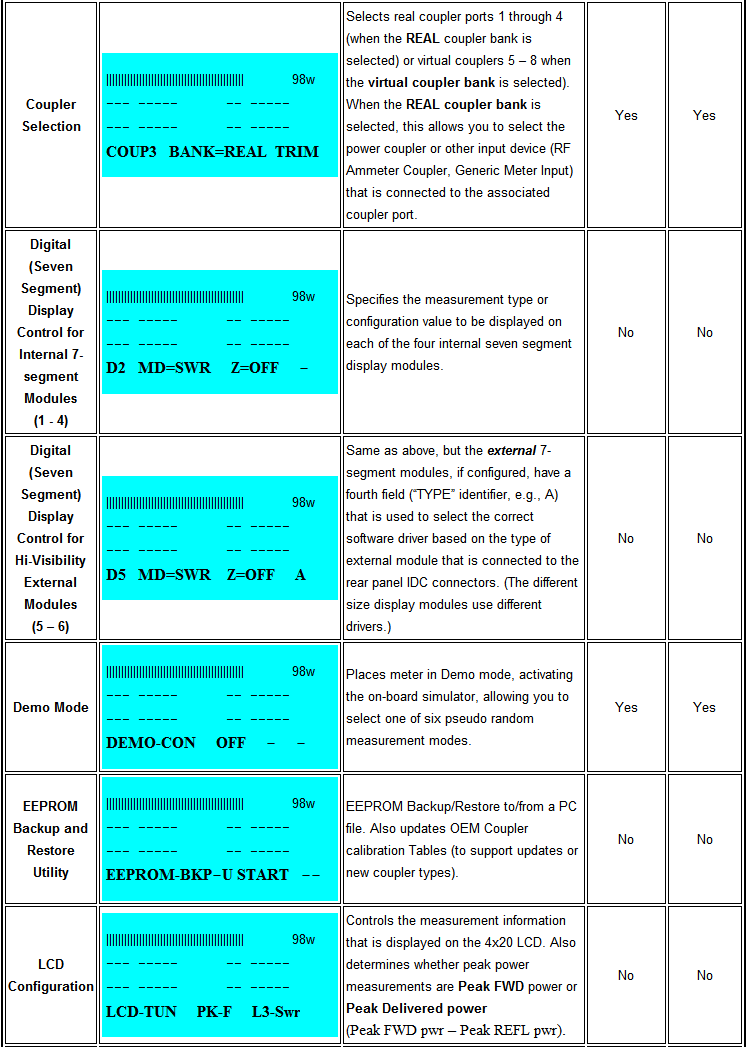

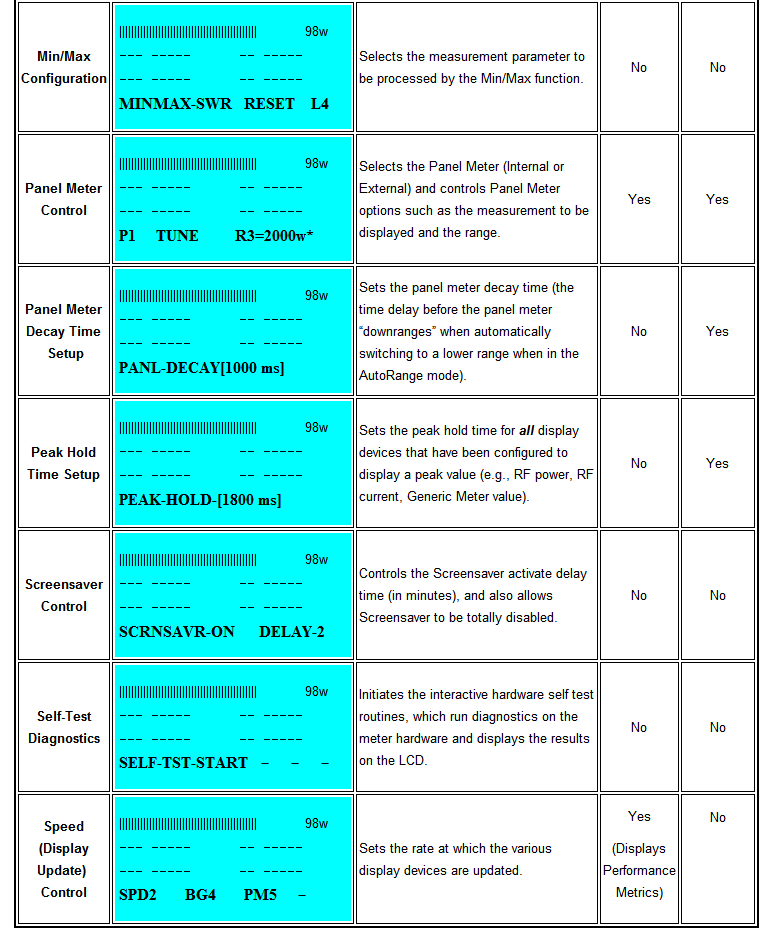

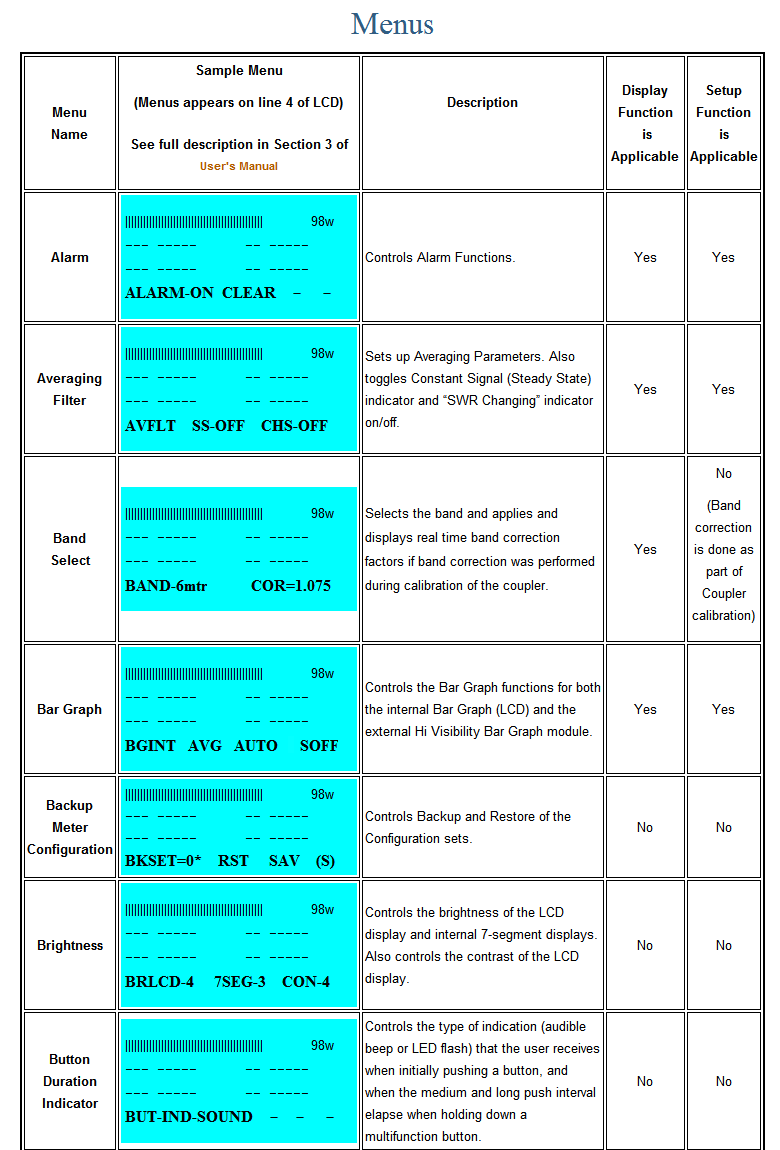

Reference Guide - Hi-Res Images for Printing
